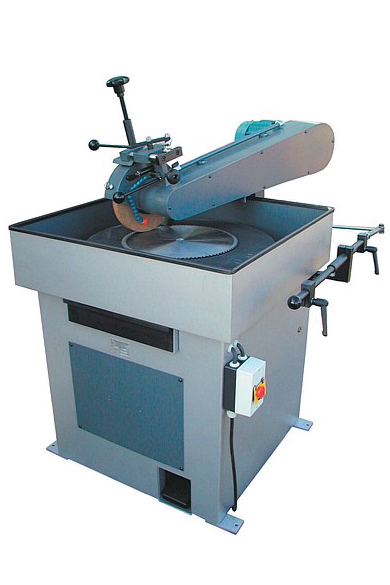

Manual Polishing Machine PLM 600 – 800
This machine is used to polish soiled or rusty saw blades of all kinds, or for the removal of cold welds.However, it is also suitable for treating new blades. We ofter two model sizes of this machine.
For the model PLM 600, the maximum polishing range is 600 mm dia., and for the model PLM 800, the maximum polishing range is 800 mm dia., the smallest polishing range is appr. 80 mm dia. The machine is fitted with a coolant tank and coolant pump.
- 1 dressing unit for the polishing wheel
- 1 polishing wheel and tools for exchanging the polishing wheel
- 1 indexing table rubber 650 x 5 x 51
- 1 device for adjustment of the stop for the outside and inside diameter of the saw blade
Options:
1) indexing table speeds,100 rpm
2) Clockwise and counter clockwise running of the indexing table. This is particularly important for saw blades with reamer cutting edges
Technical data
| Dimensions: | 960 mm 1160 mm wide |
| 1450 mm deep | |
| 1350 mm high | |
| Weight: | 300 kg/ 395 kg |
| Cooling water tank capacitiy appr. 63 litres. Delivery output of the cooling water pump appr. 20 litres/min. Dimensions of the polishing wheel 250 mm dia., 25 mm wide, bore at least 200 mm dia. Larger bore diameters up to 100 mm possible using a reducing ring. Minimum abrasion diameter 125 mm. |
|
| Drive output: | Gear motor 0,75 kW |
| Drive output: | Polishing wheel 1,5 kW |
| Coolant pump: | 0,12 kW |
| Speed of the indexing table: | 100 rpm./min. |
| Speed of the polishing wheel via V-belt | |
| Current Load: | 16 Amp, time-lag |
| Operating voltage: | 230/400 Volts, 50 cycles |
| 240/440 Volts, 60 cycles |
