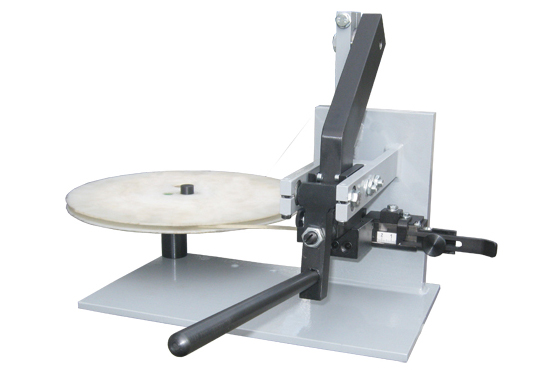

Manual Solder Cutting Device, Type LA 20 M
This cutting device is used manually only. The silver solder is manually fed and by pressing the lever it is bent and cut to length. The length of the bent 90° part is determined by the knife width.
The total length is set by an adjustable stop.
Technical data
| Weight: | 10 kg (22 ibs) |
| Dimensions: | width: with solder roll 560 mm (22″) width: without solder roll 490 mm (19″) |
| depth: with solder roll 610 mm (24″) depth: without solder roll 540 mm (21″) | |
| height: approximately 310 mm (12″) | |
| Cycle average: | ca. 20 – 25 cuts per Minute |
