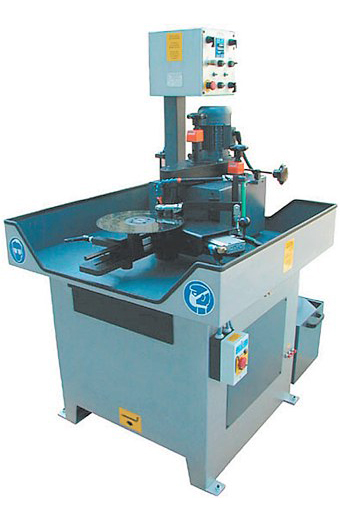

Automatic Grinder for Chip Breaker Grooves Model SBN 700
A compact automatic machine to grind CHIP BREAKER GROOVES on your TCI, HSS and Segmental Circular Sawblades from 100 mm to 700 mm Diameter.
- Fast – Accurate – Service friendlyl
- Developed through Field Experience
- Simple to Operate
- World-wide Standard of the Control Clements

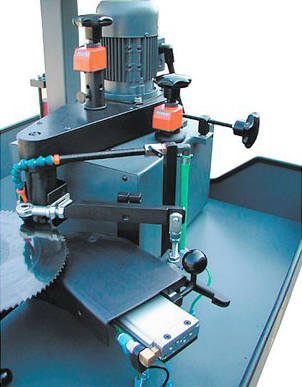

The groove distance between left and right on the alternating teeth is infinitely adjustable and is achieved automatically in one revolution:simply select the number of leeth on the tooth counter and the machine will switch off automatically when number of teeth is reached.
Technical data
| Power rating -drive motor: | 0,4-0,5 kW |
| Grinding spindle speed: | 7800 – 15800 rpm |
| Grinding wheel diameter: | Borazon oder Diamant 100 mm Ø and 50 mm Ø, 4″ & 2″ |
| Tooth pitch: | 2 mm to 100 mm/ 1/ 16″ – 4″ |
| Cycle time: | 5 sec./ tooth |
| Grinding speed: | infinitely variable |
| Control unit: | hydro-pneumatic (Festo) |
| Compressed air consumption: | approx. 40 L/ min. |
| Compressed air pressure: | 6 bar/ 90 ps 1 |
| Compressed air connection: | NW 6 mm |
| Standard voltage: | 230/400 V, 60 cycles |
| 230/400 V, 60 cycles other voltage via transformer |
|
| Fuse protection: | 3 lead fuses/ 10 A/ with time lag |
| Total connected load: | 0,6 kW |
| Coolant tank content: | 60 Litres |
| Coolant concentrate: | Same as saw grinders |
| Dimensions: | Height: 1530 mm, Depth: 1050 mm, Width: 900 mm |
| Weight: | 280 kg |
