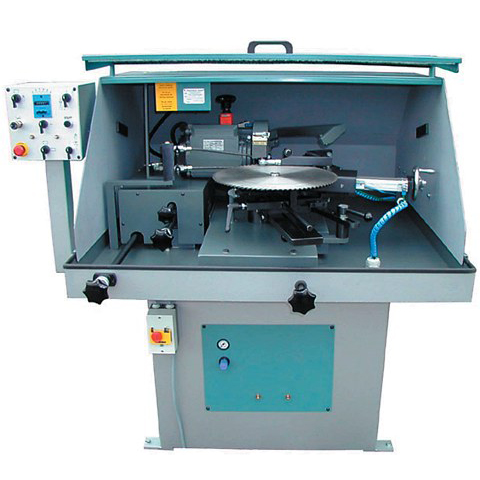

Automatic Grinding Machine for Pocketing-Carbide-Seat Type PLS 800-4 B
The cost-effective solution:
4 Saw Bodies from 100 mm up to 800 mm diameter can be processed simultaneously in a chucking.
(Larger diameters on request).
- Fast – reliable – easy maintenance
- Developed in practical application
- Simple to operate – rapid conversion
- Space-saving compact machine
- World-wide standardized control units
- The machine can be repaired by a works fitter or mechanic
Technical data:
| Driving motor: | 1,1 kW, 2800 N |
| Grinding spindle speed: | 4530 N, cutting speed 47 meters |
| Grinding wheel diameter: | Borazon 200 diameter coating width 2 mm, coating height 5 mm |
| Tip spacing: | from 6 to 110 mm |
| Tool orthogonal rake range: | 15 degrees to + 30 degrees |
| Cycle time: | approx. 12 secs. for 4 Pocketing-Carbide-Set |
| Set Grinding feed: | infinitely variable |
| Rapid traverse: | infinitely variable |
| When processing individual single bodies, grinding wheel stroke adjustable, max. stroke length 35 mm. | |
| Control: | hydro-Pneumatic (Festo> |
| Air consumption: | approx. 20 – 40 litres/min. |
| Operating pressure: | 6 bar |
| Main air connection: | NW 6 mm |
| perating voltage: | 230/ 400 Volts, 50 cicles |
| 230/ 440 Volts, 60 cicles | |
| Fusing: | 3 x 16 Amp. time lag |
| Rated output: | 1,4 kW |
| Coolant tank: | contents 63 Litres |
| Dimensions: | high 1300 mm, deep 1300 mm, wide 1200 mm |
| Weight: | approx. 402 kg |
