Automatic Plate Seat Grinding Machine PLS 800 MB

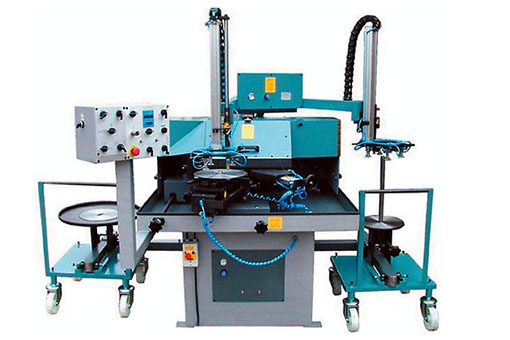

Automatic Plate Seat Grinding Machine PLS 800 MB with automatic loading and discharge of the Loading/Discharge Trolley
The economic solution:
for saw bodies from 100 mm to 800 mm diameter.
- Fast – continuous performance – maintenance free
- Developed through field experience
- Ease of operation – quick set-up
- The loading and discharge unit does not need to be exchanged when converting for other body diameters
- Minimal space requirements due to compact size
- World-wide standardized parts
- Festo control system – meaning world-wide service network
- The machine can be maintained and repaired by a machine fitter or work mechanic
- Spare parts can be produced by the owner.
Technical data:
| Driving motor: | 1,1 kW, 2800 N |
| Grinding spindle speed: | 4530 revs.= 47 Metres |
| Grinding wheel: | CBN=Borazon |
| Grinding wheel diameter: | 200 dia. coating width 2 mm, coating height 5 mm |
| Tooth pitch: | from 6 mm to 100 mm |
| Hook angle range: | – 15°negaive + 30°positive |
| Cycle time: | 4 – 8 secs. depending on saw body thickness and stock removal |
| Cycle time during loading and discharge: 15 – 16 secs | |
| Grinding feed: | Steplessly adjustable |
| Rapid traverse: | Steplessly adjustable |
| Max. pre-loading height of the loading trolley: | Saw blade body stack height 450 mm |
| Control system: | SPS-Siemens control |
| Air consumption: | approx. 40 Litres per Minute. |
| Air consumption during loading and unloading: appr. 60 litres | |
| Operating voltage: | 230/ 400 Volts, 50 cycles or 230/ 440 V, 60 cycles |
| Fusing: | 3×16 Amp. time lag |
| Rated output: | 1,4 kW |
| Coolant capazity: | 63 Litres |
| Dimensions: | height 200 cm, width 240 cm, depth 200 cm |
| Weight: | 825 kg |
On request, a second program can be fitted in the machine. This machine type is equipped to permit clamping of 4 saw blade bodies simultaneously, and grinding of up to 4 plate seats during the downward movement of the grinding wheel.Only possible with manual operation, i.e. the loading unit is switched off.
