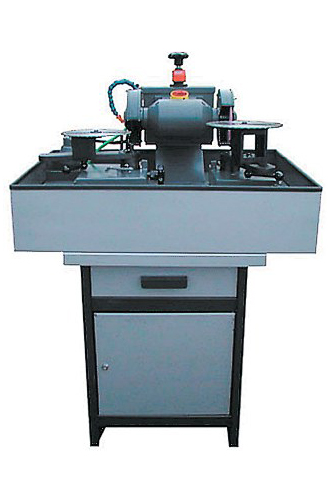

Manual seat pocket regrinding machine Type PLT 600
Manual seat pocket regrinding machine with cut-off device or oversize HM teeth Type PLT 600
Manual seat pocket regrinding machine with cut-off device for oversize brazed HM teeth on HM circular saw blades from 100 to 600 mm Ø. 800 mm Ø can be provided on request.

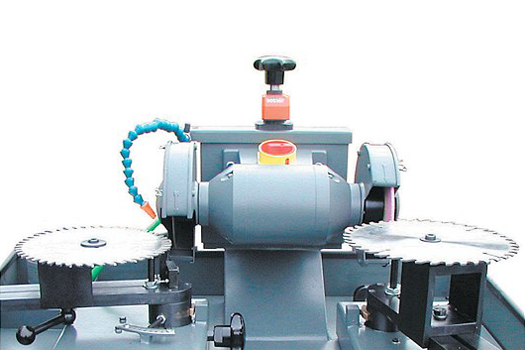

This machine is fitted with a double grinding wheel mounting and a double saw blade holder for two different purposes.
- Right-hand side:
Regrinding the plate seat after unbrazing using a ceramic grinding wheel 175 mm dia. and 4 mm wide with an adjustment scale from 15° negative to 35° positive with blade thickness adjustment.
- Left-hand side:
Cutting off oversize teeth using a diamond cutting wheel 150 or 175 mm dia. ca. 1 mm wide. Adjustment scale for clearance angle from 15° negative to 35° positive. The cut-off process takes place below an angle of 0° to the axis.
- Additional uses:
– Offsetting the back of the tooth
– Offsetting the chip limiter on BG saw blades
– Breast grinding with the help of a diamond grinding wheel
– Re-sharpening the saw blade circumference below 0°
– Alternate top beveled can be provided at extra cost.
Technical data:
| Saw diameter: | max. 600 mm dia. |
| Weight: | 175 kg |
| Dimensions: | Width: 92 cm |
| Depth: 72 cm | |
| Height: 135 cm | |
| Total power: | 0,57 kW |
| Driving motor: | 2750 1/min. |
| Coolant content: | 60 Litres |
| Grinding wheel diameter: | Ceramic wheel 175 mm dia. |
| Diamond-cut-off wheel 150 or 175 mm dia. | |
| Operating voltage: | 230/400 Volt, 3 Phase, 50 cycles or |
| 230/440 Volt, 3 Phase, 60 cycles | |
| Fuse protection: | 3 lead fuses/10 A/with time lag |
