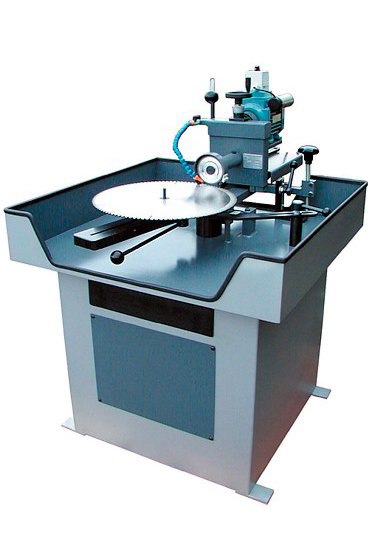

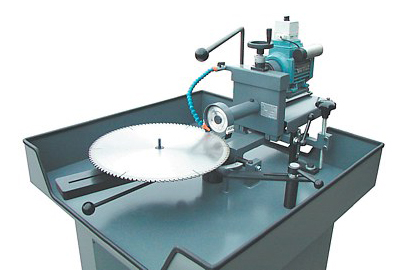

Manual Side Grinder FL 1000 with Coolant System
Compact manual machine for side grinding of any tooth form, also for Strobe inserts, with a grinding stroke length of 170 mm. This machine is also ideal for side grinding of carbide tipped saws for the metal working industry.
Technical data
| Weight: | 218 kg |
| Dimensions: | 1100 mm wide, 900 mm deep, 1289 mm high |
| Coolant plant: | 63 Litres capacity |
| Operating voltage: | 230/400 Volts, 3-Phase, 50 cycles |
| 230/440 Volts, 3-Phase, 60 cycles | |
| Grinding motor: | 1,1 kW, 4000 rpm |
| Grinding spindle: | Poly-V-belt driven |
| Grinding wheel: | 75, 100, 125 ,150 mm dia. |
| Down feed adjustment: | 30 mm total range, 1 revolution=1 mm, 1 unit=0,01 mm |
| Hook angle: | -5 degrees to +5 degrees |
| Radial clearance: | -5 degrees to + infinitely |
| Tangential clearance: | ± infinitely adjustable |
| Saw blade: | 60 mm to 1050 mm dia. |
| Grinding stroke: | 170 mm |
