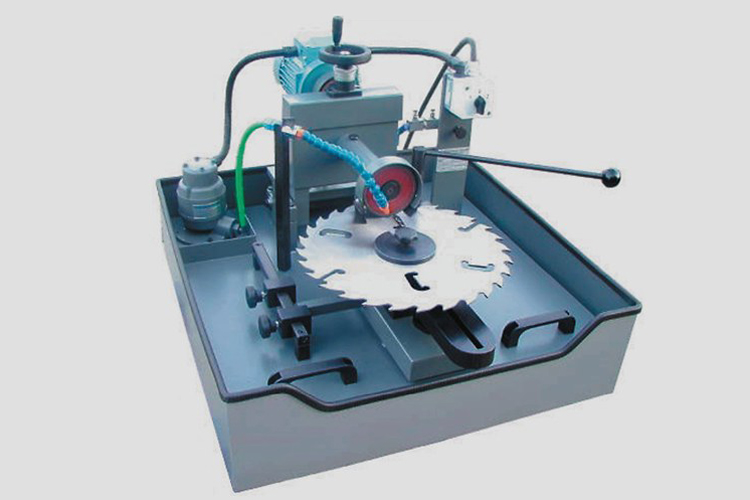

Manual Side Grinding Machine FL 700/S
Technical data
| Weight: | 122 kg |
| Dimensions: | Width 800 mm, Depth 700 mm, Height 580 mm |
| Coolant content: | 48 Litres |
| Operating voltage;: | 230/400 V, 50 cycles |
| 230/440 V, 60 cycles | |
| Driver power: | 0,75 kW, 2830 N |
| Fuse protection: | 3 lead fuses 10 A with time lag |
| Grinding spindle Speed: | 4700 N |
| Grinding spindle Poly-V belt drive | |
| Grinding wheel diameter: | 75 Ø and 100 mm Ø |
| Adjustment range: | 1 Revolution = 1 mm 1 graduation = 0,01 mm |
| Grinding strobe: | 100 mm |
| Max. saw diameter | 700 mm |
| Min. saw diameter | 200 mm |
| Smallest bore diameter: | 16 mm |
| Largest bore diameter: | 150 mm |
Lager bore diameter available on special request.

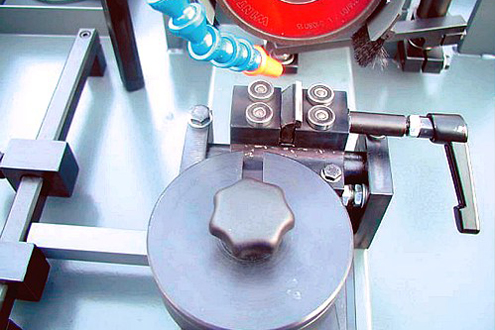

Manual grinding deed via hand lever (see illustration)
Please note:
This machine requires a compressed-air connection of 6 bar
NS 4-6 mm. Compressed air consumption is very low.
