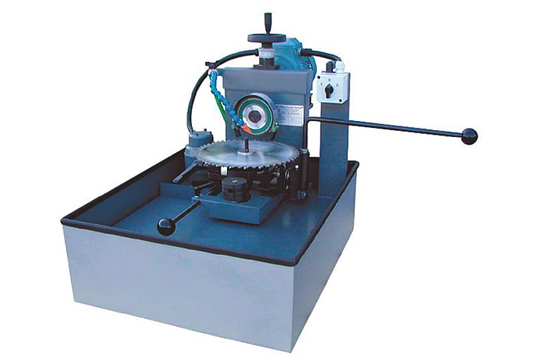

Manual Single Side Grinder for Carbide Tipped Saw Blades Typ FL 600 and FL 700
Are you looking for a quick, economical way to side grind your retipped teeth down to the size wanted?… This is the machine. High precision grinding spindle, sturdy construction, flood coolant and ample motor power will remove any amount of carbide in one pass. Magnetic saw holder, accurate and fast.
| FL 600 | FL 700 |

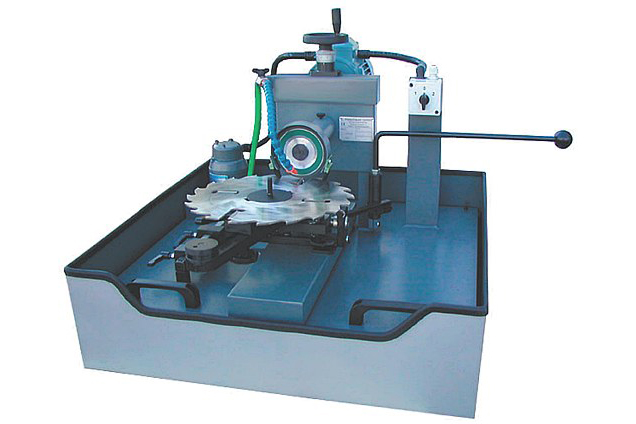

| The same appliance but a more powerful model to allow side grinding also of strobe saws. | |
| Technical data: | Technical data: |
| Weight: approx. 80 kg | Weight: approx. 105 kg |
| Dimensions: 800 mm long, 500 mm wide, 580 mm high | Dimensions:800 mm long, 700 mm wide, 580 mm high |
| Coolant content: 28 Litres | Coolant content: 48 Litres |
| Operating voltage: 230/440 V, 50 cycles 230/440 V,60 cycles other voltage on request |
Operating voltage: 230/440 V, 50 cycles 230/440 V,60 cycles other voltage on request |
| Drive output: 0,75 kW, 2830 N | Drive output: 0,75 kW, 2830 N |
| Grinding spindle speed: 4700 N | Grinding spindle speed: 4700 N |
| Spindle drive by means of flat belt | Spindle drive by means of flat belt |
| Grinding wheel diameter: 75 and 100 mm | Grinding wheel diameter: 75 and 100 mm |
| Adjustment range: 35 mm, 1 revolution=1mm, 1 graduation=0,01 mm |
Adjustment range: 35 mm, 1 revolution=1mm, 1 graduation=0,01 mm |
| Grinding strobe: 45 mm | Grinding strobe: 170 mm |
| Angular adjustment: | Angular adjustment: |
| Orthogonal clearance : + and – optionally adjustable | Orthogonal clearance : + and – optionally adjustable |
| Orthogonal rake: + and – optionally adjustable | Orthogonal rake: + and – optionally adjustable |
| Tangential angle, positive optionally adjustable, negative up to 17° | adjustableTangential angle, positive optionally adjustable, negative up to 17° |
| Max. saw diameter: 600 mm | Max. saw diameter: 700 mm |
| Min. saw diameter: 60 mm | Min. saw diameter: 60 mm |
| Max. bore fixture: 150 mm, | Max. bore fixture: 150 mm, |
| bigger dia. on request | bigger dia. on request |
| Min. bore diameter: 10 mm | Min. bore diameter: 10 mm |
