Pocket Grinding Machine PLSB 1600

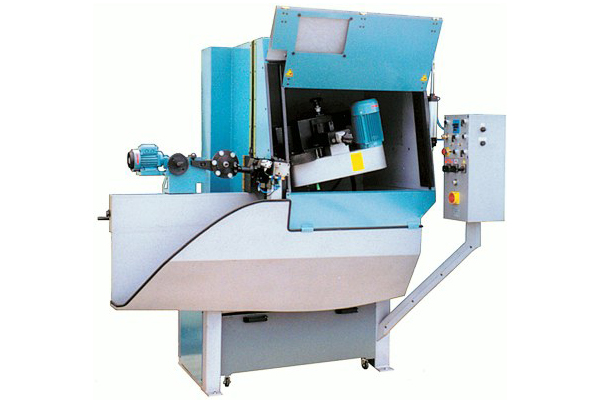

Pocket Grinding Machine PLSB 1600 with set up to grind chip breaker grooves
A compact machine to grind or rework tooth pocket on large dimensioned saws from diameter 250 mm to 1600 mm. A unique feature is added to this machine to grind chip breaker grooves on segmental, HSS or carbide tipped saws. By rotating the grinding head 90 degrees and changing the grinding wheel with a cutoff wheel, chip breaker grooves are easily cut. A index unit advances the saw from top down.
Technical data
| Saw blade dia.: | 250 mm to 1600 mm |
| Tooth pitch: | 5 mm to 120 mm |
| Hook angle: | – 20 degrees to + 35 degrees electrically by gear motor 2 speeds |
| Spindle motor: | 1,5 kW, 2 speeds, 1440/ 2880 rpm |
| Grinding spindle: | 2 speeds, 3200/ 6800 rpm |
| Poly-v-belt driven | |
| Grinding wheel: | 150 mm dia., borazon |
| Cutoff wheel: | 80 mm to 100 mm dia., diamond and borazon |
| Cycle time: | 8 – 25 seconds for pocketing |
| 8 – 12 seconds for chip breaker grooves | |
| Coolant plant: | 130 Litres capacity |
| Dimensions: | 2400 mm wide |
| 1000 mm deep | |
| 2000 mm high | |
| Weight: | 970 kg |
