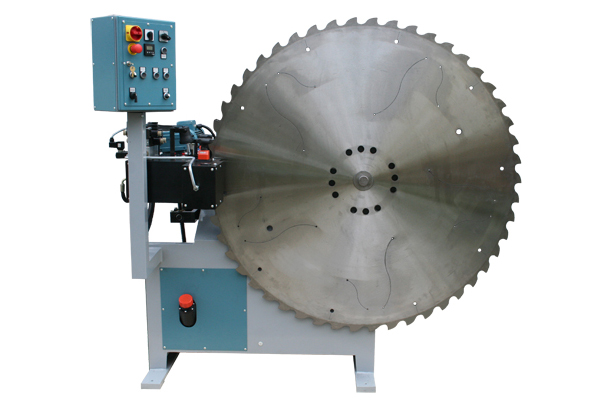

Automatic Saw-setting Machine SM 2000
For the setting of circular saw blades for tooth forms A (wolf tooth) and B (pointed tooth) of 450-2000mm.
Technical Data:
| Min. saw-blade diameter | 450 mm |
| Max. saw-blade diameter | 2000 mm |
| Max. pressing pressure | 200 bar |
| Hydraulic drive: | 2.2 kW |
| Saw blade drive: | 0.55 kW |
| Operating voltage: | 230/400 V, 50 cycles |
| 230/440 V, 60 cycles | |
| Fuses: | A 3 x 16 A slow-blow |
| Weight: | 780 kg |
| Dimensions: | 130 cm width 220 cm length 200 cm height |
