SW 1200 S5

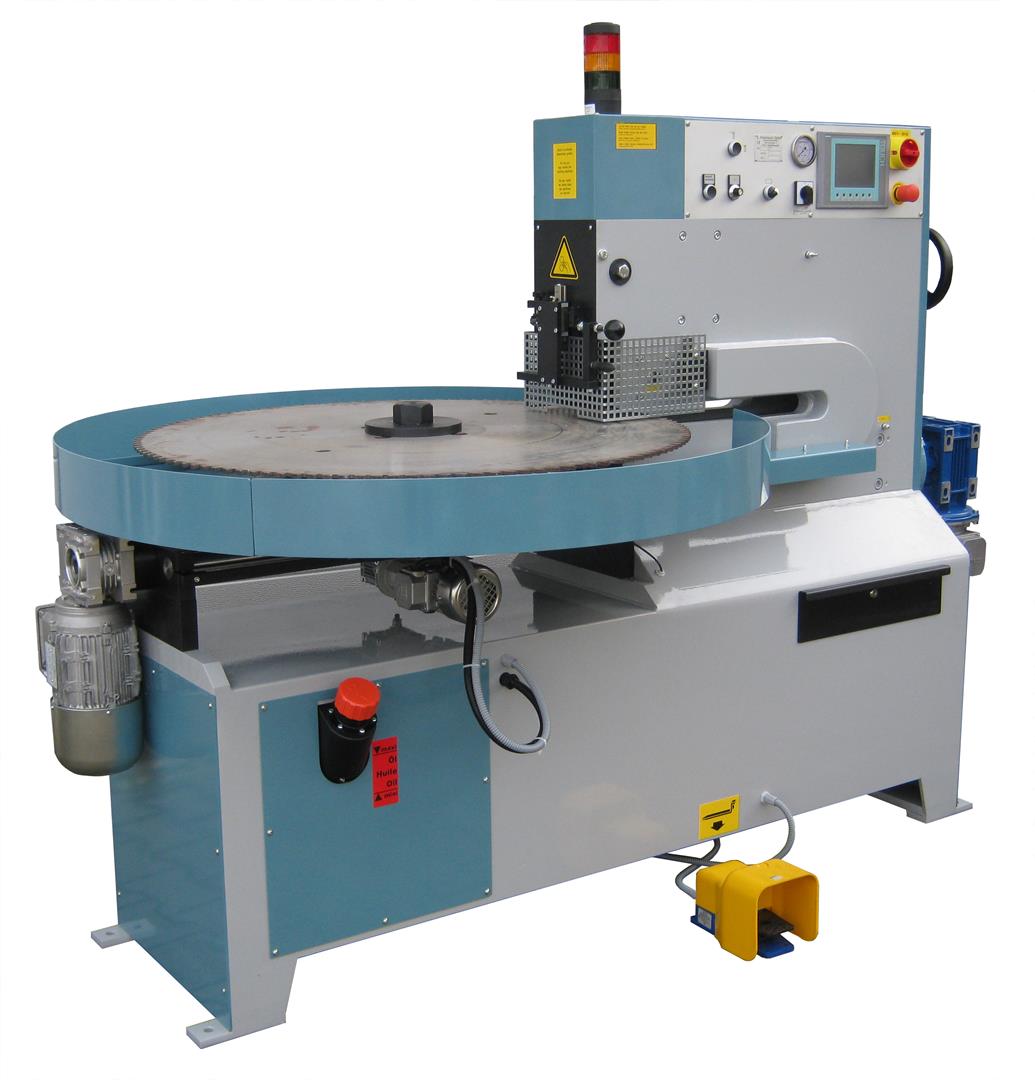

SW 1200 S5 (Large)
Design features

  1. High-strength, welded construction
  2. Hydraulic pressurizing system with pressure presetting function
  3. Externally mounted rollers, permitting monitoring of the rolling process
  4. High-strength sawblade mounting assembly with spindle drive by gear motor for advancing and reversing movements
  5. Hydraulic motor shuts down on completion of rolling process, thus preventing unnecessary heating of the hydraulic fluid
  6. Rollers do not begin to turn until sufficient rolling pressure has built up
  7. The machine is started by a touch switch and can be stopped at any time and in any position


Technical data SW 1200 S5
Max. saw dia.: 1200 mm
Max. rolling circle dia.: 1080 mm
Min. rolling circle dia.: 160 mm
Roller protection
from machine: 500 mm
Max. rolling pressure: approx. 10 to.
Rolling speed: by potentiometer adjustable
Drive power, roller drive: 2,2 kW
Drive power, hydraulic motor: 2,2 kW
Drive power diameter adjustment: 0,37 kW
Operating voltage: 230/400 V, 50 cycles
Cable cross section: 5 x 2,5 mm²
Dimensions: Length: 2220 mm
Depth: 1310 mm
Height: 1710 mm
Weight: 985 Kg
