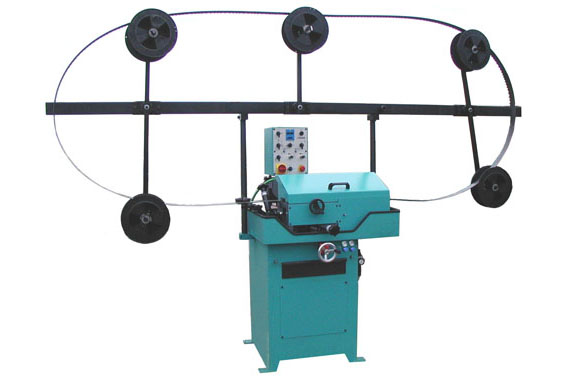

Band saw tooth tip resharpening machine Type HMBS 80

A compact machine for the resharpening of hard metal-faced saw bands with a width of 8-80mm.


Technical data:

Tooth pitch: 3-40mm
Rake angle adjustment: between 10° negative and 25° positive
Output power: Grinding motor 0.75KW, with infinitely variable speed control via a frequency converter
Grinding wheel spindle drive: via the grinding spindle poly-V belt drive
Grinding wheel diameter: 200mm, CBN or DIA grinding wheel
Coolant capacity: 60 Litres
Operating voltage: 230/400 V, 50 cycles
230/440 V, 60 cycles
Fuses: A 3 x 16 A slow-blow
Weight: 320 kg
Dimensions: 120 cm width
140 cm length
120 cm height
