HAT I 2000 Rivet Inserting and Removal Machine
Rivet Inserting and Removal Machine with Lift and Swivel Device for Segmented Saw Blades from 200 to 2000 mm Ø

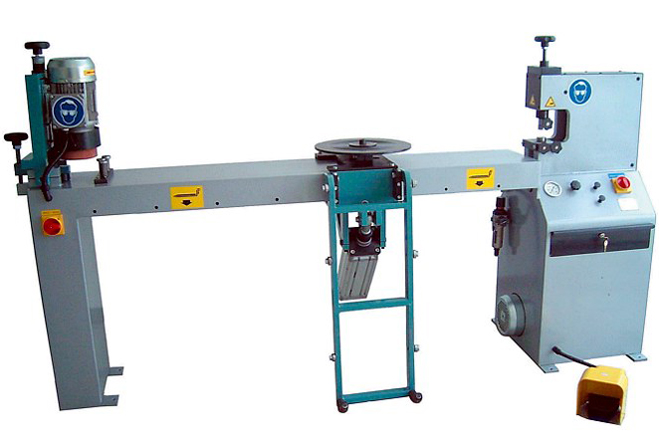

The pictured model is equipped with a hydraulic rivet removal unit, height adjustable with a manual lever.
On the opposite side is an orbital riveting machine for riveting of replacement segments.
A swivel is fitted to the orbital riveting machine.
Turning the riveting machine 90° gives way to the rivet grinding unit.
Between the rivet removal device and the orbital riveting
unit is a roller slide with a pneumatic holding brake clamping the slide in any position.
Several models are available:
Model HAT I 2000 for saw blades from 200 to 2000 mm dia.
Model HAT II 1400 for saw blades from 200 to 1400 mm dia.
Model HAT III 1000 for saw blades from 200 to 1000 mm dia.
Model HAN I without orbital riveting machine
Model HAN II without orbital riveting machine
Model HAN III without orbital riveting machine
HAE with hydraulic rivet removal and inserting
device but only with exchangeable dies:
1 set for rivet removal
1 set for rivet insertion
