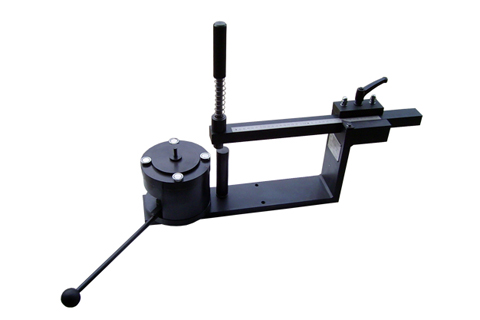

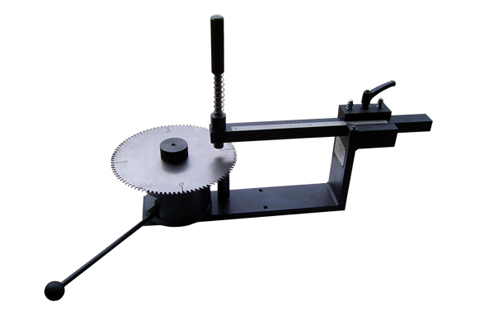

Saw Centering and Dividing Appliance T 24 – 800
The problem of making secondary and countersunk holes in metal-cutting saws etc. is a frequent one in tools companies, saw and saw base manufacturing and sharpening workshop. Drilling the holes is not a problem, but division?
Or the reference diameter?
The T 24 – 800 will solve the problem of difining the reference circle, dividing and centering.
Technical data:
Quick-action dividing appliance with notches, 1 notch 15° direct division up 90° possible.
Facility for division by 2, 3, 4, 6, 8, 12. Max. reference diameter 600 mm, larger diameters on request.
Max. clamping diameter 800 mm, larger diameter on request
| Weight: | approx. 40 kg |
| Dimensions: | 800 mm long |
| 210 mm wide | |
| 450 mm high |
