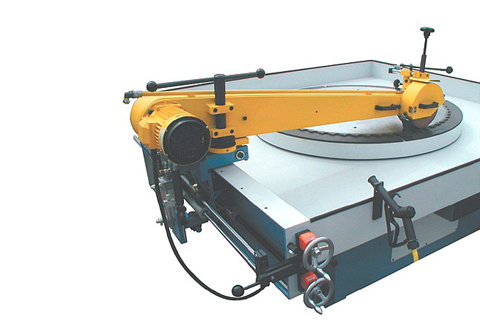

Automatic Polishing Machine Models PL 1050 – PL 1250 – PL 1600 – PL 2000-PL 2500
For polishing and grinding out of cold pick-up on HSS carbide tipped circular saw blades of between 100 and 2500 mm in diameter, depending on the machine rating.
Technical data:
drive polishing wheel: Spindle double v belt
Polishing speed: 1460 Umdr./min.
drive: round table directly via intermediate coupling
Speed of the rotary table: PL 1050 ca 100 Umdr.
PL 1050 ca 100 Umdr.
PL 1250 ca 70 Umdr.
PL 1600 ca 50 Umdr.
PL 2000 ca 50 Umdr.
PL 2200 ca 50 Umdr.
PL 2500 ca. 50 Umdr.
drive polishing wheel: from PL 2200 3kW
from PL 1250 with automatic rotary table braking
Polishing speed: infinitely variable
Polishing cycles: can be set at the counter
Coolant tank: 63 L-108 L-150 L
Control: Hydro-Pneumatik
aerial: 80-120 Liter pro Min
Operating voltage: 230/ 400 V, 50 Hz
Diameter of grinding polishing wheels: 250x50x25
PL 1050 1600 mm wide
1200 mm deep
1450 mm high
Pl 1250 1850 mm wide
1400 mm deep
1450 mm high
PL 1600 2150 mm wide
1750 mm deep
1450 mm high
PL 2000 2600 mm wide
2250 mm deep
1450 mm high
PL 2200 2750 mm wide
2450 mm deep
1550 mm high
PL 2500 2800 mm wide
3200 mm deep
1550 mm high
