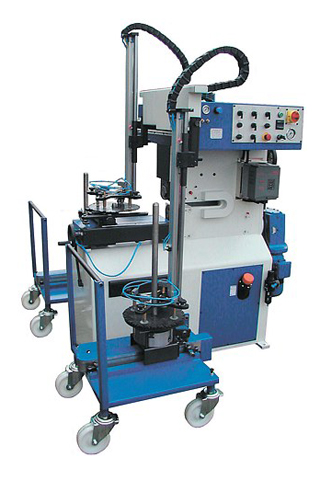

Hydraulic Tension Rolling Machine SW 800 MB

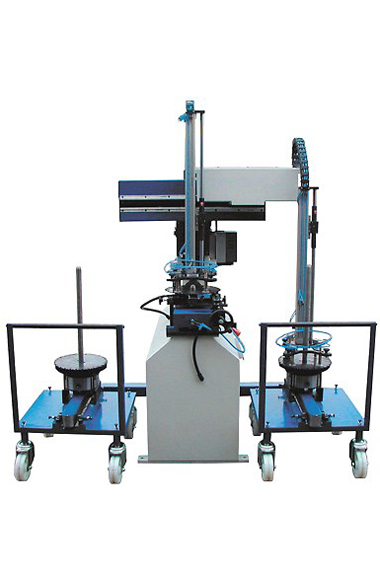

For circular saws or saw blanks with automatic loading and unloading unit.


This machine was developed through field-experience

  • Plain, economical technology
  • Simple to operate
  • Quick change over
  • Capable of manual operation in case of automatic loading malfunctions
  • Simple retrofitting of the automatic loading unit on existing tension rolling machines.

Technical data:

Saw blade dia.: 160 mm to 800 mm
Tensioning zone: 300 mm maximum from outside dia. of saw
Rolling speed: 1200 mm per minute
Rolling pressure: up to 250 bar, preselected
Roller drive motor: 2,2 kW
Hydraulic pump motor: 2,2 kW
Loading/ unloading time: 20 seconds
Dimensions: 1900 mm wide
1750 mm deep
2200 mm high
Weight: 1060 kg
