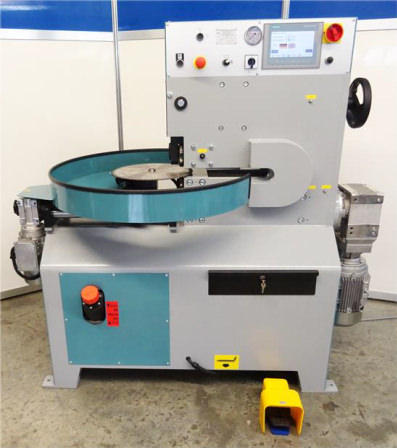

Typ SW 800 S Tension Rolling Machine
Tensioning roller SW 800 for rolling in tensioning rings on saw bodies of any kind. Smallest rolling circle Ø 160 mm.
Throat depth: 350 mm. Max. saws Ø 800 mm.
Max. rolling pressure approx. 10 t .
Drive power 2,2 KW via gear motor with 46/min.
Hydraulic power unit: Max 200 bar pressure. Stepless pressure adjustment
with preselection.
The working cycle is started by a foot switch.
Voltage: 230/ 400 V, 3 phases 50 Hz.
CONSTRUCTION FEATURES
- sturdy welded construction
- hydraulic pressure with pressure preselection
- control of the rolling process by external rolling rollers.
- sturdy saw blade supports with spindle drive by geared motor with forward and backward motion.
- the rolling process is controlled by a controlled by a rotary encoder, independent of the diameter of the saw blade i.e. exactly one revolution, the machine stops machine stops automatically. Overrolling or premature stop is avoided.
- the rolling rolls start to run only when the rolling pressure is present.
- the machine is started by a foot switch and can be stopped at any time and in any position
| Technical data | SW 800/1000 | SW 1200 | SW 1600 | Max. saw dia.: | 800/1000 mm | 1200 mm | 1600 mm | Max. rolling circle dia.: | 770 mm | 1000 mm | 1290 mm | Min. rolling circle dia.: | 160 mm | 160 mm | 160 mm | Roller protection | from machine: | 300 mm | 300 mm | 450 mm | Max. rolling pressure: | approx. 10 to. | approx. 10 to. | approx. 10 to. | Rolling speed: | by potentiometer adjustable | by potentiometer adjustable | by potentiometer adjustable | Drive power, roller drive: | 2,2 kW | 2,2 kW | 2,2 kW | Drive power, hydraulic motor: | 2,2 kW | 2,2 kW | 2,2 kW | Drive power diameter adjustment: | 0,37 kW | 0,37 kW | 0,37 kW | Operating voltage: | 230/400 V,50 cycles | 230/400 V, 50 cycles | 230/400 V, 50 cycles | Cable cross section: | 5 x 2,5 mm² | 5 x 2,5 mm² | 5 x 2,5 mm² | Dimensions: | Length: 1700 mm | Length: 1900 mm | Length: 2200 mm | Depth: 620 mm | Depth: 620 mm | Depth: 620 mm | Height: 1550 mm | Height: 1550 mm | Height: 1550 mm | Weight: | 790 Kg | 820 Kg | 850 Kg |
