SRP 800 Straightening Work Station

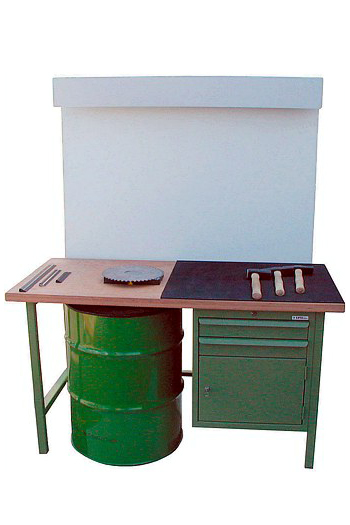

SRP 800 RichtplatzThe workstation is equipped as follows: 1 Workbench, with choice of drawer cabinet on right or left side 1 Anvil with hardened, rectangular striking face, 250 x 150 mm.
The striking face can be replaced with a convex striking face, diameter
150 mm (standard size) by loosening two screws. Needless to say, other diameters and sizes can be supplied on application.

The following is included:
3 straightening hammers (1 ball peen hammer, 1 crosshead hammer, 1 roughing hammer)
3 HARR RULERS : 150, 300 and 500 mm long. Other lengths on request.
1 fluorescent light with on/off switch, 1 55 Gallon drumm to be filled with fine sand to keep the anvil in the correct position and height. Repetitive hammering causes the anvil to tilt, which can be corrected by regrading the sand under the anvil.

Technical data:

Dimensions: 1500 mm wide
 800 mm deep
1800 mm high
