Tension Testing Device with Axial and Radial Runout Testing Device

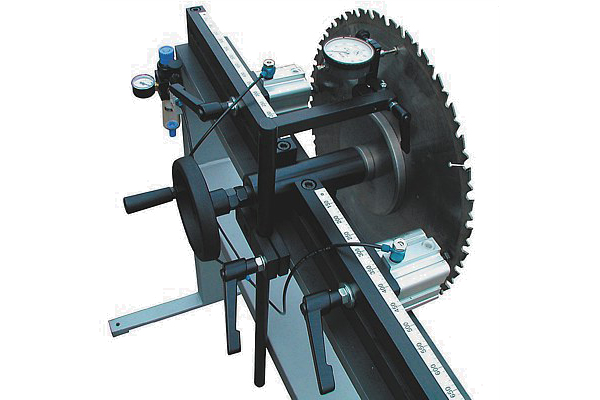

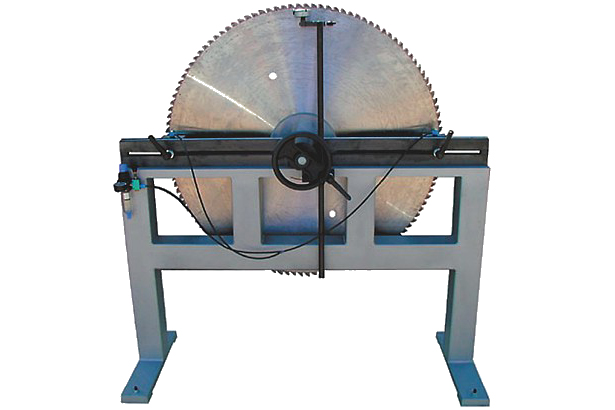

| SP 800 S | SP 1600 S |
These testing devices are suitable for the testing of all types of circular saw blades wherever tension problems, or axial and radial runout can occur. Suitable for the manufacture of new blades or for sharpening and repair services.
We offer 5 different device sizes:
SP 800 S testing range from 80 – 800 mm dia. test jounal 5/8″ or 16 mm dia.
SP 1000 S testing range from 120 – 1000 mm dia. test jounal 3/4″ or 20 mm dia.
SP 1250 S testing range from 150 – 1250 mm Ø dia. test jounal 1″ or 25 – 30 or 32 mm dia.
SP 1600 S testing range from 400 – 1600 mm Ø dia. test jounal 11/2″ or 40 mm dia.
SP 2000 S testing range from 400 – 2000 mm Ø dia. test jounal 2″ or 50 mm dia.
Precise testing of axial runout is only possible if the correct flange diameter is used.
The following flange diameter sizes are available:
50 mm , 80 mm , 100 mm , 110 mm , 120 mm , 130 mm , 150 mm , 160 mm , 200 mm , 250 mm , 300 mm , 360 mm , 400 mm .
. Special sizes are available on request.
Should the correct flange size not be known, it is advisable to enquire with the user of the machine in which the saw blade is used.
