Sand Blasting Cabin SK 800 MB 2

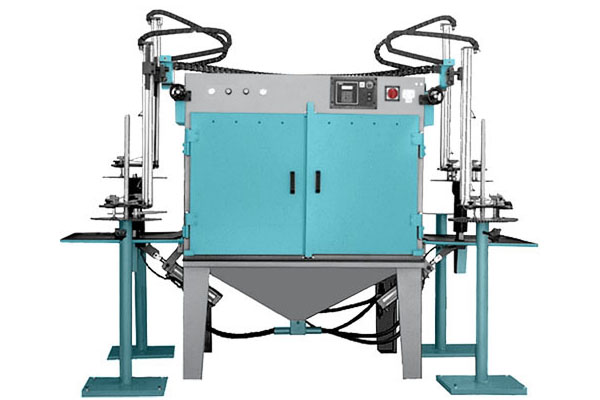

This cabin is used wherever saw blades are produced in large quantities. As is clearly iltustrated in the photo, this machine is fitted with 2 loading and unloading stations, i. e. 2 saw blades are automatically moved into position and sand blasted.It is important to mention here that the setting of the saw blade diameter does not necessarily have to be the same on both sides. As an example: On the left-hand side, saw blades with a diameter of 350 mm and on the right-hand side, saw blades of only 250 mm are sand blasted.The sand blasting time remains the same, but can be set between 0,1 and 5 minutes.We can optionally supply this cabin with or without an extraction system.
Technical data:
| Dimensions: |
2200 mm wide |
|
1900 mm deep |
|
2700 mm high |
| with the cylinder raised |
|
| Dimensions: |
2850 mm wide |
|
1900 mm deep |
|
2050 mm high |
| with lowered cylinder and open loading doors |
|
| Air requirement: |
appr. 2000 litres/min. at 6 bar |
| Air requirement per nozzle: |
500 litres/min |
| Sand blasting time: |
Optionally adjustable from 0,1 to 5 min. |
| Output: |
Examble: Saw blade diameter 360 mm, 54 teeth appr. 2 to 2,5 min. |
|
54 teeth appr. 2 to 2,5 min. |
| Loading: |
loading and unloading time appr. 20 secs. |
| Drive: |
Saw blades are driven via gear motor at appr 2 revolutions per minute |
| Recommended blasting sand: |
Chilled cast shot, diamond 20 – 40 |
| Recommended blasting sand quantity: |
For initial utilization 4 x 25 kg |
| Operating voltage: |
230/400 Volts, 50 cycles |
|
240/440 Volts, 60 cycles |
| Air connection: |
at least 3/4″ |
