Sandblaster up to 2 metres
Economic solution for blasting large saws from 500 mm to 2000 mm in diameter

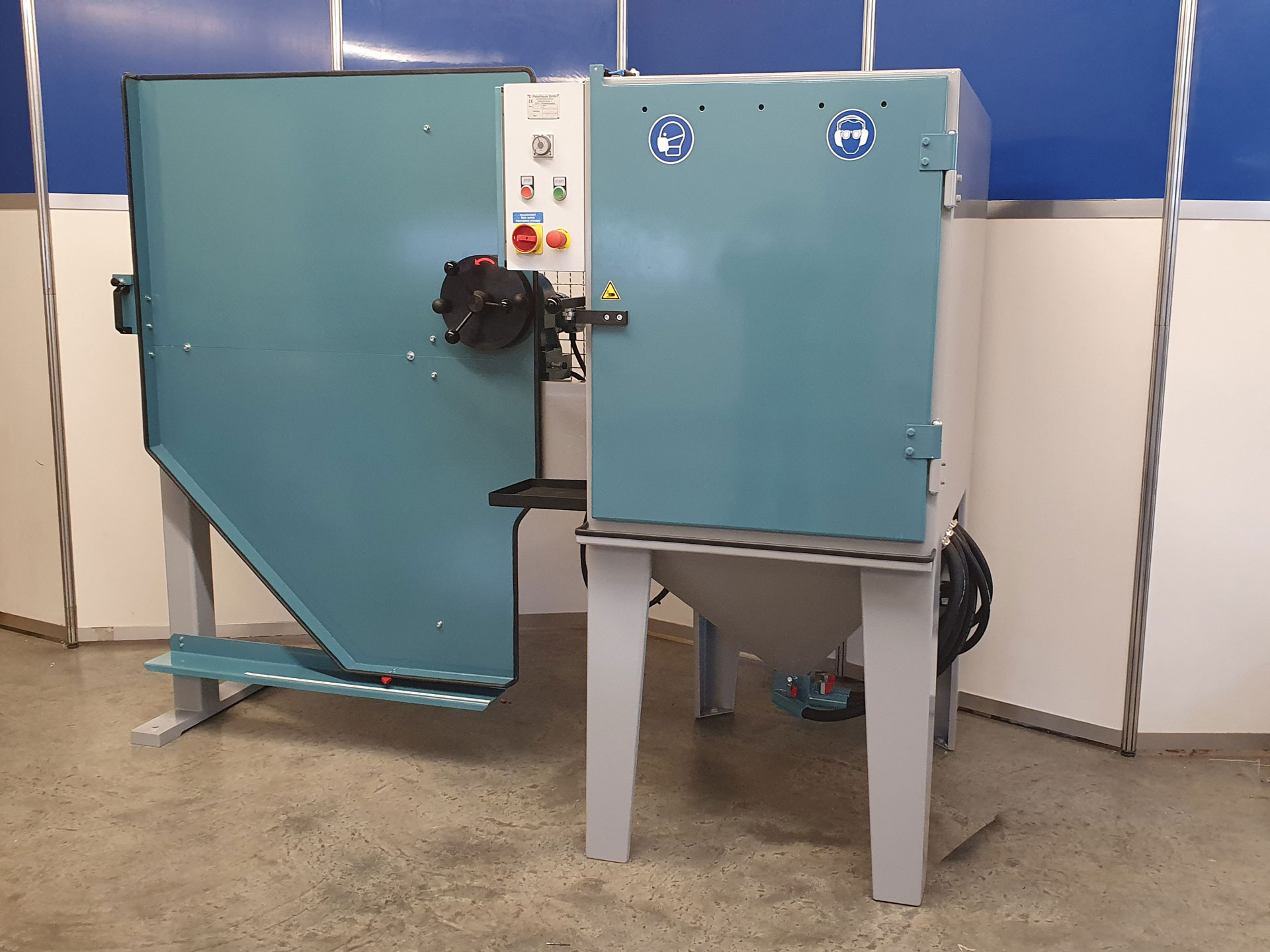

As shown in the picture the saw enters the blasting cabinet through a on the side panel.
The saw carrier moves lightly on a roller guide left and right. The carrier is fitted with an adjustable stop for easy repositioning of the heavy saws.
Two blasting guns, mounted within the cabinet, are positioned to the left and right of the saw. If required a third gun may be fitted to blast directly into the saw gullets. The blasting cycle is timed by an electric timer.
The SK 2000 is also availaible for universal use, fitted with internal light, door window, access holes for heavy duty gloves and foot switch for single blasting operation with one gun. Included is a fixture to hold small saws from 100 mm to 500 mm in diameter.
Technical data:
Saw blade diameter: 500 mm to 2000 mm.
Air consumption per gun: approximately 500 Liters/Min.
| Dimensions: | 2300 mm wide |
| 1100 mm deep | |
| 1700 mm high |
