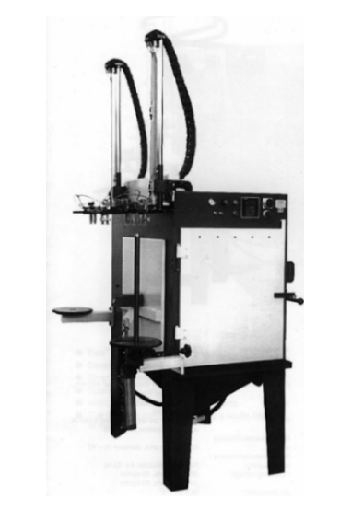

SK 800 MB Automatic Sand Blaster Cabin
A fully automatic sand blaster for carbide tipped saw blades from diameter 100 mm to 800 mm (4″ to 31-1/2″), with material handler for automatic loading and unloading of saw with diameter 150 mm to 500 mm (6″ to 19-1/2″).
This is a new design with a cost effective solution.
- does not have a complicated expensive technology
- fast cycle time and reliable
- designed from experience
- simple operation, fast change over
- changing the saw diameter does not involve adjustment of the handler
- a compact machine using very little floor space
- FESTO pneumatic controller components worldwide serviced
- in case of handler malfunctioning, the sand blaster can be operated manually
- manual operations for saw blade diameter below 150 mm (6″) and above 500 mm (19-1/2″)
The sand blaster is serviced friendly:
The machine has 3 large openings
Door 700 mm x 800 mm (27-1/2″ x 31-1/2″)
Feeder door 650 mm x 650 mm (25-1/2″ x 25-1/2″)
Back wall (filter unit) 500 mm x 500 mm (19-1/2″ x 19-1/2″)
Technical data:
| Gear motor for saw blades rotation: | 0,01 kW ca. 5 rpm. |
| Saw blades change over in automatic mode: 20 to 30 Seconds | |
| Blasting time depending on saw: /u> | j1 to 3 Minutes |
| Change over of saw blade stack (200 ea): | 3 Minutes |
| Repositioning of blasting nozzles: | 30 Seconds |
| Air consumption at 6 Bars (87 psi): | 500 l/Minute per nozzle |
| (87 psi): | (18 cfm per nozzle) |
| Air consumption for saw bladeschange over: | 100 l/Minute (3.5 cfm) |
| Air supply pipe size: | 1/2″ |
| Operating voltage:: | 230/440 volts, 3-phase, 60 cycles |
| cyclesControl pneumatics: | Festo |
| Material handler,pneumatically driven: | double arm execution |
| Weight: | 500 kg (1100 lbs) |
| 1700 mm wide, 1700 mm deep, 2800 mm high (67″ x 67″ x 71″ (W x D x H)) |
