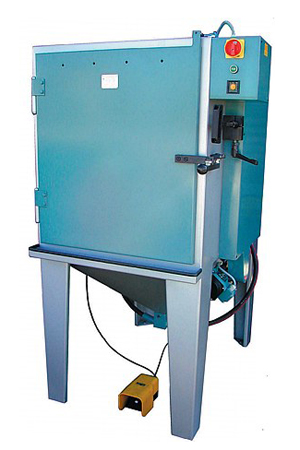

Sandblasting Cabin Model SK 800 II and SK 800 III
Model II and III are specifically designed for clamping one saw blade only. Therefore, air consumption is smaller.
Cabin dimensions: 800 mm wide, 1700 mm high, 1100 mm deep.
Cabin dimensions: 800 mm wide, 1700 mm tall, 1100 mm deep
Duration of sandblasting: Example: Saw blade of diameter 350 Ø Z 54 will be sandwich sandblasted in two minutes.

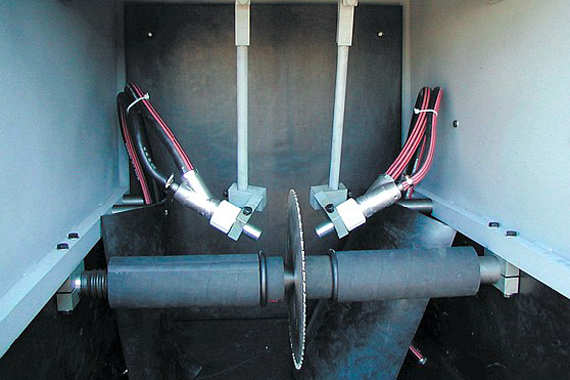

Clamping and unclamping by pneumatically activated cylinder, controllable by a foot valve.
When the timer is activated, sandblasting proceeds automatically.

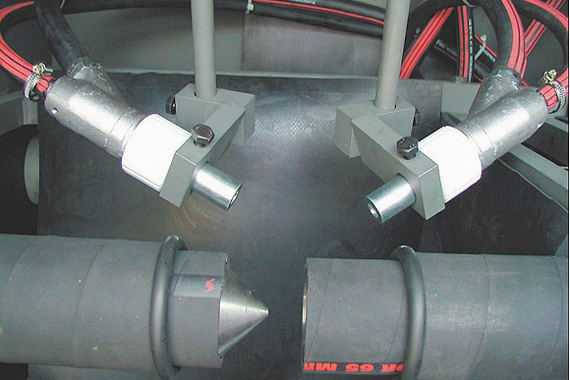

For saw bores larger than 60mm, the center point must be replaced.
Set-up time: two minutes
Model III
This model is fitted with a light inside the cabin, one glass window, and two openings for two insulated rubber gloves. This allows to blast milling cutters and other repaired parts.
